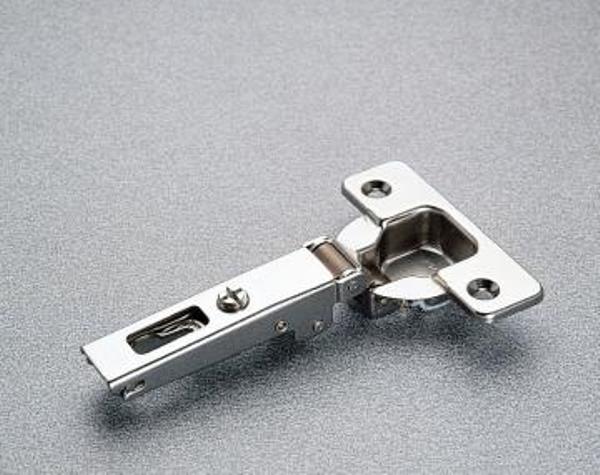

SALICE 94° FULL OVERLAY SELF CLOSING HINGES Screw-on

Salice offers one of the most versatile concealed hinge systems with height, depth and side adjustment. Series 200 Hinges are compatible with the popular DOMI Snap-On Mounting Plates, allowing for easy installation and removal of doors. Hinges are Nickel Plated for long lasting corrosion and wear resistance.

• Screw-on: Hinges are non-doweled
• Compatible with All Traditional Series 200 Mounting Plates & All DOMI® Snap-On Mounting Plates
• Crank "A" (Overlay = 15mm + Boring Distance - Baseplate Thickness)
• 110° Opening Angle
• Self Closing
• Boring Pattern: 45mm
• Cup Diameter: 35mm
• Cup Depth: 11mm
• Boring Distance: 3mm to 6mm
• Finish: Nickel-Plated
