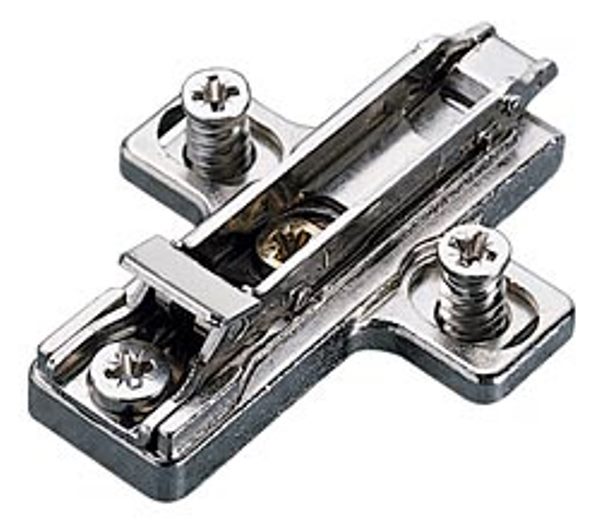

Salice DOMI Snap-On Automatic Mounting Plate, 2mm
Salice offers one of the most versatile concealed hinge systems with height, depth and side adjustment. DOMI Snap-On Mounting Plates easily attach to hinges without any tools. Simply press the hinge into the Snap-on mechanism to install. DOMI plates also feature the AAR (Automatic Adjustment Response) Feature: a slight turn of the Frontal or Vertical Adjustment Cam quickly positions the hinge.
- Euro Screws (Included), but can be unscrewed and replaced with #6 wood screw.
- Euro Mounting Plate for Hinge Series 100, 200, Logica, F, 400 and B
- Thickness: 2mm (Overlay = Hinge Crank + Boring Distance - 3mm)
- 2-Way Cam Adjustment in Mounting Plate (Depth & Height)
- Height Adjustment: +/-2mm
- Depth Adjustment: +2.8mm & -0.5mm
- Hole Spacing: 32mm
- Finish: Nickel-Plated
- Use #2 PoziDrive Screwdriver for Screw Adjustment
***Hinges Sold Seperately***
|
