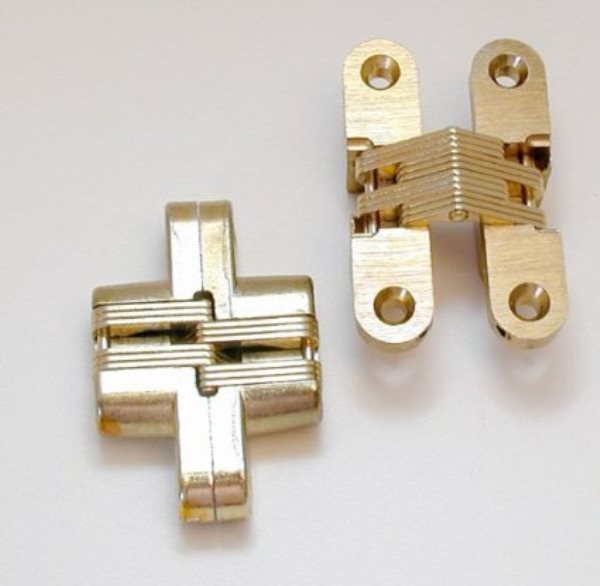

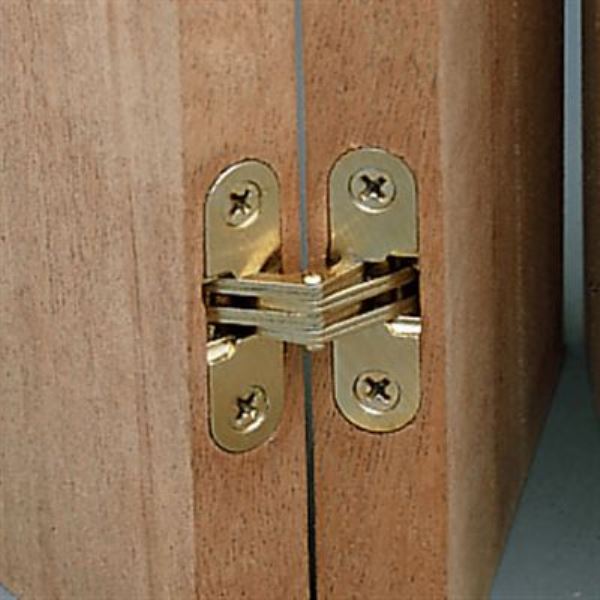

Elegant and durable, Soss invisible hinges are completely concealed when the cabinet door is closed. Available in Dull Chrome and Dull Brass finishes. Other colors and models by SOSS can be special ordered.
BRASS CHROME LENGTH WIDTH DEPTH CLEARANCE WOOD SCREWS HINGE GAP
SOSS218P4 SOSS218P26D 4-5/8” 1-1/8” 1-19/32” 27/32” 1-3/4” 10X1-1/2 3/64”
SOSS216P4 SOSS216P26D 4-5/8” 1” 1-7/8” 23/32” 1-3/8” 14X1-1/2 1/16”
SOSS212P4 SOSS212P26D 3-3/4” 3/4” 1-5/64” 17/32” 1-1/8” 10X1-1/4 3/64”
SOSS208P4 SOSS208P26D 2-3/4” 5/8” 29/32” 29/64” 1” 8X1-1/4 3/64”
SOSS204P4 SOSS204P26D 2-3/8” 1/2” 23/32” 23/64" 3/4” 7X1-1/4 1/16”
SOSS101P4* 1-11/16” 3/8” 31/64” 19/64” 1/2” 5X3/4” 1/32”
* Non-load bearing
Templates are carried for the 204 and higher number Soss hinge. Templates require a bushing with an O.D. of 3/4” and maximum distance past base of 9/16”. Porter-Cable Guide 42024 and 42237 (lock nut) meet these requirements. Additionally, a 1/2” inch diameter straight plunge cut (like 1073 or 1055 or 1025, 1026) is used for all hinge installations.
