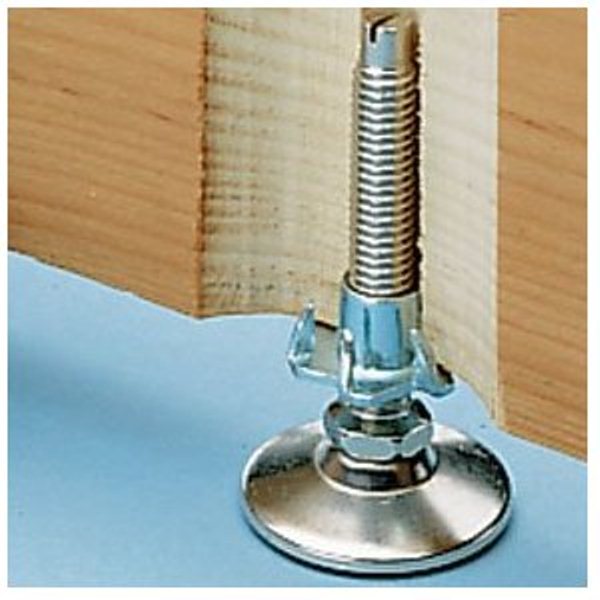

These levelers have a non-marring, non-rusting white plastic shoe, covered with a bright chrome (mylar) hood. The hex head provides ready height adjustment as the 114" x 20 screw threads into a T -nut, shown and ordered separately.
LEVELERSWIVE swivels up to 16 degrees for angled legs and uneven floors.
LEVELERNONSW does not swivel- for straight legs and flat floors.

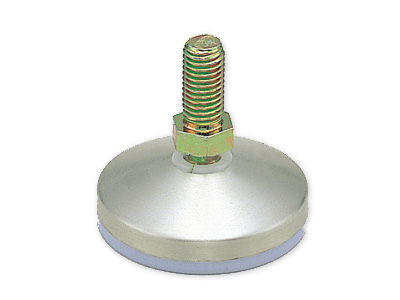

HDLEVELERSWI has a stainless steel shell over a plastic base, and measures almost 2" (1-31/32" to be exact) across. The foot of the leveler swivels up to 15 degrees for angled legs or uneven floors. The stainless steel bolt (3/8" x 16 threads with a 1" length ) has a hex-nut forged into it for easy adjustment with a crescent wrench. It threads into a chrome plated steel plate (provided) which measures 1-3/4" across, and is designed to be mortised into the case (dia.- 5/8, depth- 1/2"). The plate is secured to the case with 3-#8 flat head screws, ordered separately. The manufacturer has provided no weight rating for this leveler, but it is heavy duty.Used in conjunction with HDLEVELPLATE.

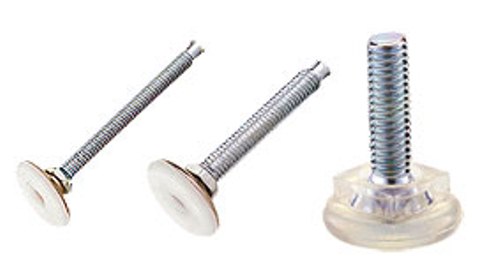

For width restricted applications, we stock the LEVEL16. This leveler has a galvanized bolt (1/4" x 20) with threaded length of 26mm (approx 1 "). A plastic foot is molded onto the head of the bolt. The Minimum installation height - 7.5mm (9/32") and adjustment range up to 15mm (19/32"). LEVEL22 M6 x 22mm x 22mm diameter.
METALSCREWGL Leveling glides have a 13/32" base, 1/4" x 20 threads x 7/8" long.
3/8X4LEVELER Adjustable glides used for mounting bracket LEVELERU. 3/8-16 threaded stem with slotted top, 1-3/8” plastic base diameter, nickel plated cover, zinc finish stem.
