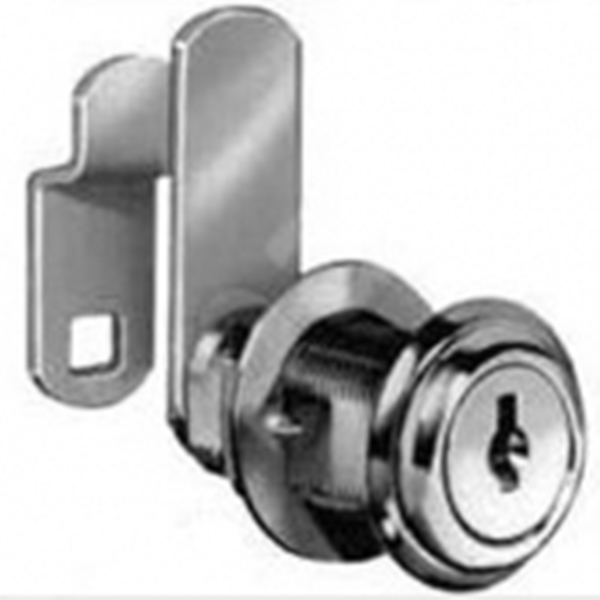

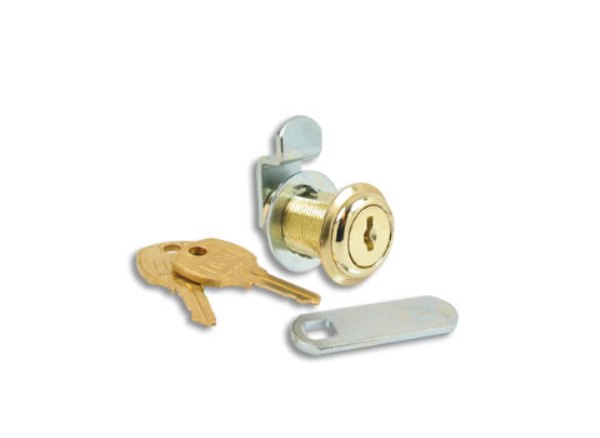

This disc tumbler cylinder cam lock from National Cabinet Locks is for flush or lipped/overlay applications.
Maximum Material Thickness: 1-7/16in.(37mm)
Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed cylinder length. Also see overlay detail above.
Operation: Either 90 degree or 180 degree cam turn. Key removable in both locked and unlocked positions.

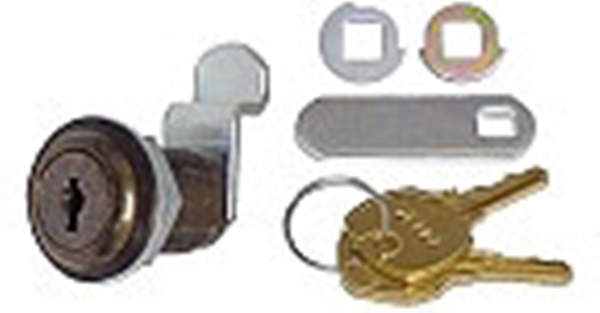

Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and 2 stop washers.
Maximum Material Thickness: 1-7/16in.(37mm)
Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed cylinder length. Also see overlay detail above.
Operation: Either 90 degree or 180 degree cam turn. Key removable in both locked and unlocked positions.
Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and 2 stop washers.
