CAM LOCKS - 7/8" MATERIAL THICKNESS

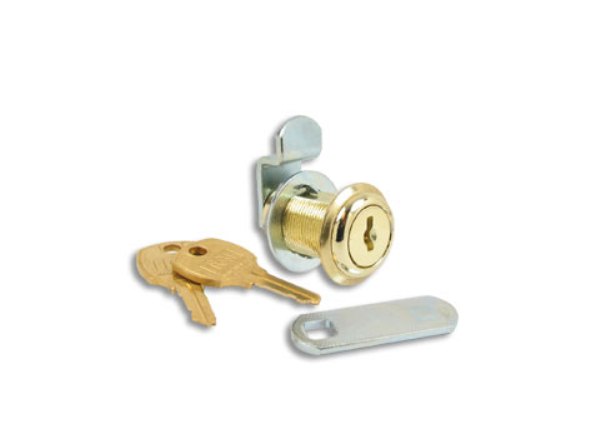

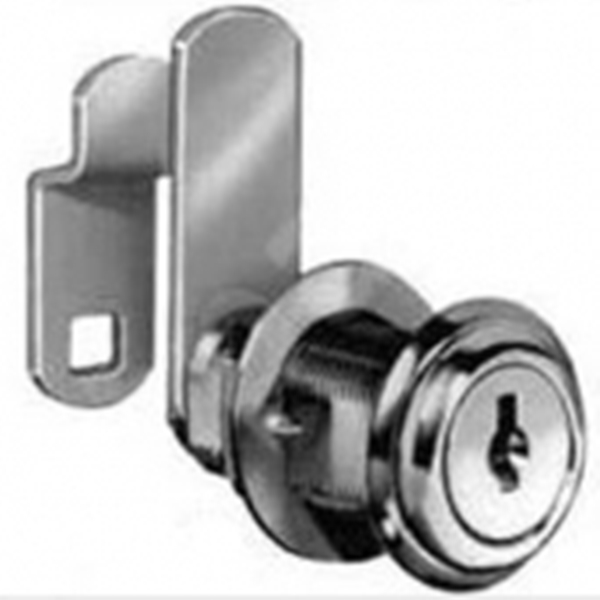

This disc tumbler cylinder cam lock from National Cabinet Locks is for flush or lipped/overlay applications.

Maximum Material Thickness: 7/8in.(22mm)

Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed cylinder length. Also see overlay detail above.

Operation: 90 degree cam turn on all locks. Key removable in both locked and unlocked positions.

14KA - Polished Nickle, Keyed Alike

3KA - Polished Brass, Keyed alike.

BLKA - Gloss Black, Keyed Alike.

KD - Keyed different.

**PACKED 25/BOX**
